    Adjustable Speed Automatic Powder Coating Machine High Productivity

    Ask Lasest Price
    Brand Name : HUA XIANG CUN
    Supply Ability : 8 Set/Sets per Year
    Price : $60,000.00 - $120,000.00/sets
    • Product Details
    • Company Profile

    Adjustable Speed Automatic Powder Coating Machine High Productivity

    Product Description

    (1)Manual powder coating line.
    Manual powder coating line is made up of pre-treatment ,powder coating booth and curing oven.
    The whole operation process is need more workers. The pre-treatment is use the artificial
    operate.It suitable the limied factory space and low output factory.

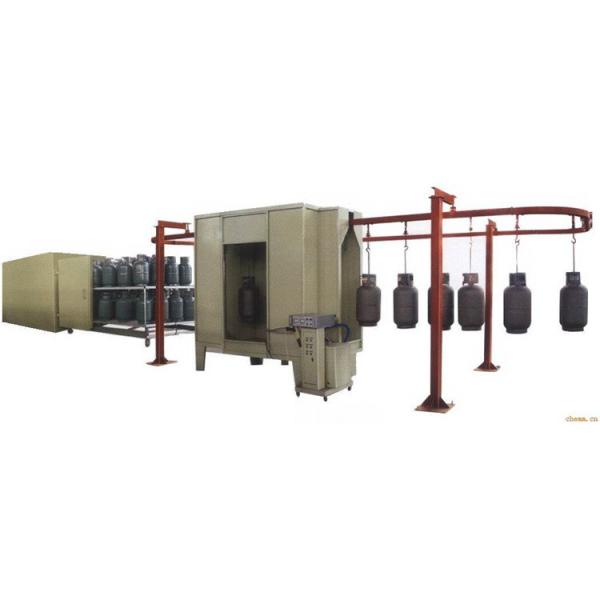

    (2)Automatic powder coating line.
    The all process almost automatic finished except uploading and downloading.
    Automatic line use the mechanical power to improve the efficiency and speed of operation.
    Improve efficiency, expand output, while effectively reducing labor costs.


    PARAMETER ONE

    Automatic powder coating line
    PART ONE: Electrostatic Powder Coating Booth
    Original
    Zhejiang ,China
    Trademark
    Hua Xiang Cun
    Coating
    Powder Coating
    Type
    Powder Coating Machine
    Substrate
    1.2mm steel
    Condition
    New
    Size
    ODM
    Recovery Model
    Cyclone Recovery or Filter
    Filter
    4-8PC Ø 320 x 600 mm
    Illumination
    2 x 40W -2 pc
    Absorption ventilators
    2 set-7-12 kW, 3000 rpm
    Electromagnetic valves
    4-8PC
    PART TWO: Tunnel Furnace
    Substrate
    1.2mm steel
    Type
    Curing oven
    Size
    ODM
    Condition
    New
    Insulation Material
    Rockwool
    Illumination Thickness
    120 mm
    Circulating Fan
    2 set-7-12 kW, 3000 rpm
    Burner
    Riello ect
    Heating Model
    Natural gas, diesel, electricity, bio-particles, coal and other
    PART THREE: Coating Machine
    Coating
    Powder Coating
    Type
    Powder Coating Machine
    Substrate
    Iron
    Input Voltage
    AC220/110V, 50-60Hz
    Output Voltage
    0-100kv
    Output Current
    0-200ua
    Max 0.6mpa
    Max. Consumption
    (0.4mpa)13.2m/H
    Max Output
    0.5mpa
    Powder Container Volume
    45L
    Working Temperature
    -20-50℃
    Color
    Gray & Yellow


    PARAMETER TWO

    PART FOUR: Reciprocating machine –Gun-Control Moduel
    PLC Automatic reciprocating machine
    Substrate
    Steel
    Condition
    New
    Size
    3000 x 600 x 750 mm
    Weight
    180KG
    Adjustable Stroke
    0 – 1800 mm
    Adjustable speed
    0-40 m/min
    Carrying capacity
    Maximum 40 kg
    Power
    220V/50 Hz
    Powder coating gun & host
    Powder coating gun & host
    6 pcs
    Weight
    580g
    Input voltage
    12V/21V
    Max Output voltage
    100 KV
    Max. current
    200 µA
    Max. powder output
    5-30 kg/h
    Gun cable length
    8m
    IP54
    Control Module
    Electricity
    220V 50Hz
    Usage of electricity
    60W
    Air flow rate
    300 lt./min
    Air pressure
    6 bar
    PART FIVE: Chain and Parts
    Chain
    QXT-200/250/300
    Parts
    100*100mm Column ,Driver, Tension device ect.
    Detailed Images
    Adjustable Speed Automatic Powder Coating Machine High Productivity
    Adjustable Speed Automatic Powder Coating Machine High Productivity
    Adjustable Speed Automatic Powder Coating Machine High Productivity
    Adjustable Speed Automatic Powder Coating Machine High Productivity
    Certifications
    Adjustable Speed Automatic Powder Coating Machine High Productivity
    Adjustable Speed Automatic Powder Coating Machine High Productivity
    Adjustable Speed Automatic Powder Coating Machine High Productivity
    Adjustable Speed Automatic Powder Coating Machine High Productivity
    Related Products
    Adjustable Speed Automatic Powder Coating Machine High Productivity

    Wholesale Dupont Powder Coating Electrostatic Painting Equipment


    Adjustable Speed Automatic Powder Coating Machine High Productivity

    Wholesale Dupont Powder Coating Electrostatic Painting Equipment


    Metal Surface Treatment Powder Coating Line


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are factory.


    Q: How long is your delivery time?

    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


    Q: What is your terms of payment ?

    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

    If you have another question, pls feel free to contact us as below:


    Our Service

    We offer a full service: From design drawings to the final installation.

    (1): Product specifications calculation and design.

    (2): Complete drawings and designs confirmation.

    (3): Provide full information on the progress of the production period and pictures.

    (4): Help customers booking ship and delivery; Regularly inform the transport situation.

    (5): Appoint a professional engineer and translator installing the line.

    (6): Provide a complete operation training.

    (7): Lifelong counseling and periodic product maintenance operations.

    (8): Professional engineers technical services and after-sales support.
